Dedal NV Optics dates back to 1991 when a group of optical engineers came together and took over the Soviet scope manufacturing from the cold war. Quickly Dedal quality, durability, and strict adherence to GOST made Dedal the preferred optic of the GRU. Tested on the battlefield and exalted on the podium, Dedal's reputation grew among elite warfighters and competitive shooters. The Dedal DHF, 4-25X56 is built to proper Tier one standards; this scope can compete with the best German and Austrian rifle optics. We are proud to represent in the USA what we believe to be the absolute best value in an uncompromising optic
The DHF 4-28×56 Harrier Intelligent Aiming System is designated for mounting on a weapon for observation, target identification, and aimed medium and long-range shooting. The built-in ballistic mechanism and the ability to enter corrections while keeping the target in sight are the main advantages of the DHF 4-28×56 riflescope.

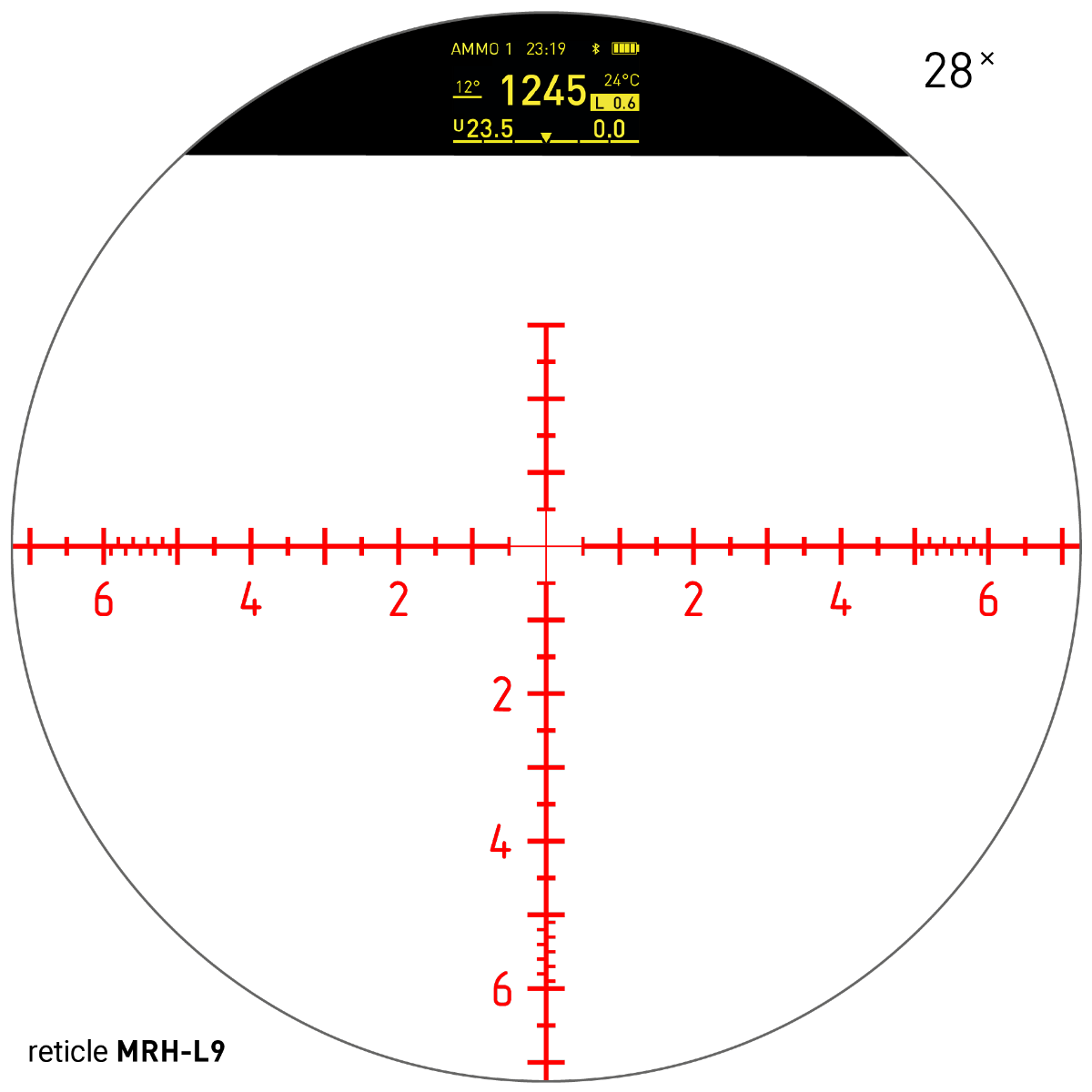

The reticle of this scope is located on the first focal plane. This location allows for effective usage of the reticle for the bullet drop compensation shooting technique and evaluating the shooting range at any optical power. The DHF 4-28×56 Harrier riflescope is equipped with an embedded information processing system and an adjustable display in the field of view. Wireless communication link provides fast and convenient data transfer from the Strelok Pro mobile app. Built-in sensors measure inclination and cant angles, ambient temperature, and atmospheric pressure. This digital environment delivers immediate calculation of the angle of sight, thus facilitating the most precise shot. The only thing the shooter must do is to set the shooting distance on display by rotating the vertical correction turret. The shooter observes the actual turret positions and his target simultaneously. This is necessary during night shooting with clip-on sights. The reticle is highlighted in red color with seven brightness levels. The built-in electronic anti-cant level provides accurate shooting in places where an obstacle may block the horizon, for example, in mountainous areas. Adjustment knobs have a clear click sound and are equipped with a zero-stop mechanism.
DHF 4-25X56 Harrier
Magnification 4-28×
Angular Field of View, m/100m (degrees) 8.7 - 1.4 (5 - 0.8)
Objective Lens Clear Aperture, mm 56
Exit Pupil, mm 9.3 - 2.1
Parallax Adjustment, m 25 - ∞
Eye Relief, mm 90
Eyepiece Dioptre Adjustment - 3...+2
Elevation Adjustment Range, mrad 32
Windage Adjustment Range, mrad ±7
Adjustment Step (Click), mrad 0.1
Power Source One AA battery
Battery Lifetime, hours 10 - 80
Tube Diameter, mm 34
Dimensions, (L×W×H), mm 411×92×88
Weight, kg 1.07
Operational Temperature -40°С…+50°С
Operational Humidity ≤98%
IP Rating IP67
