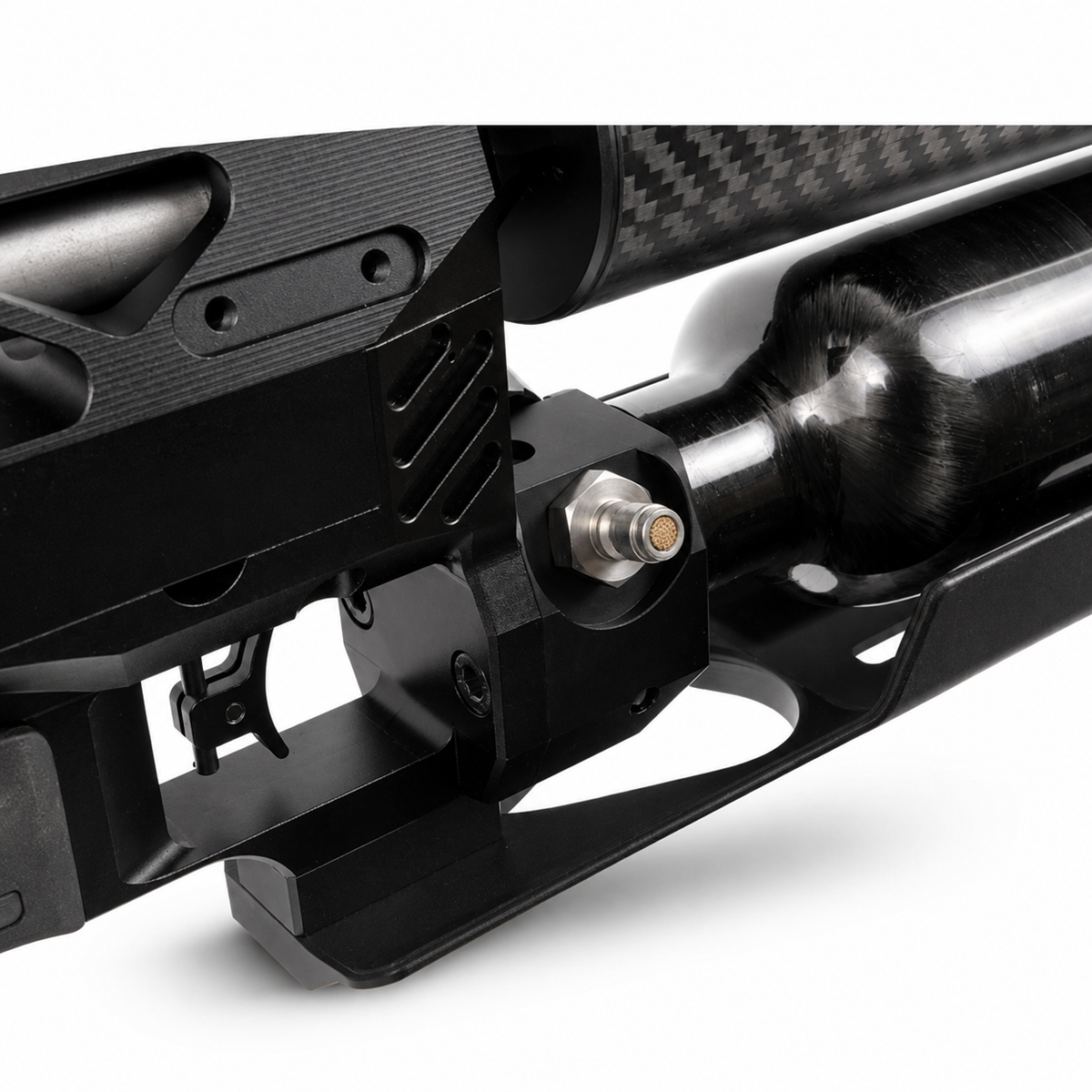

RTI Mora Compact PCP air rifle Foster fill connection

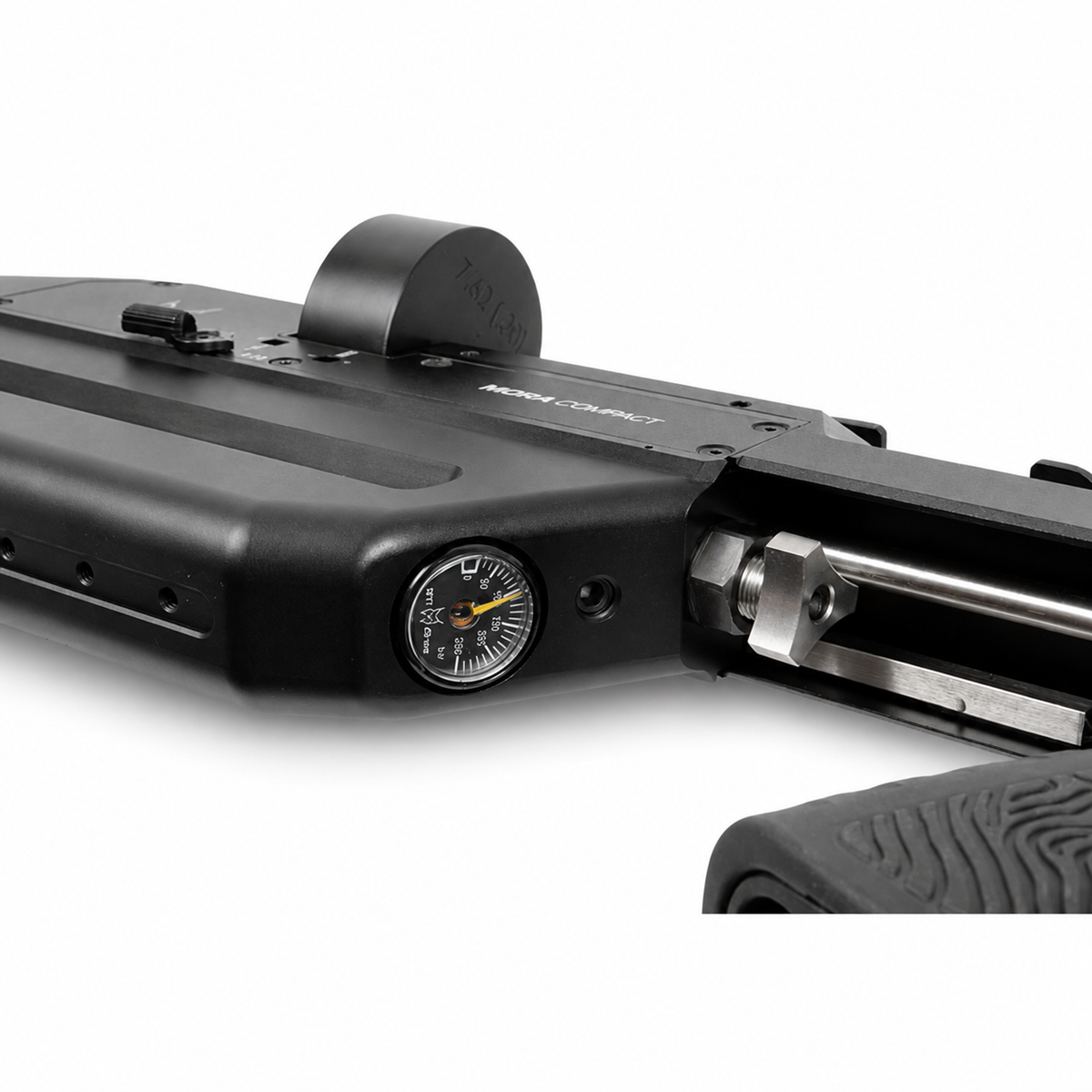

RTI Mora Compact PCP air rifle pressure gauge

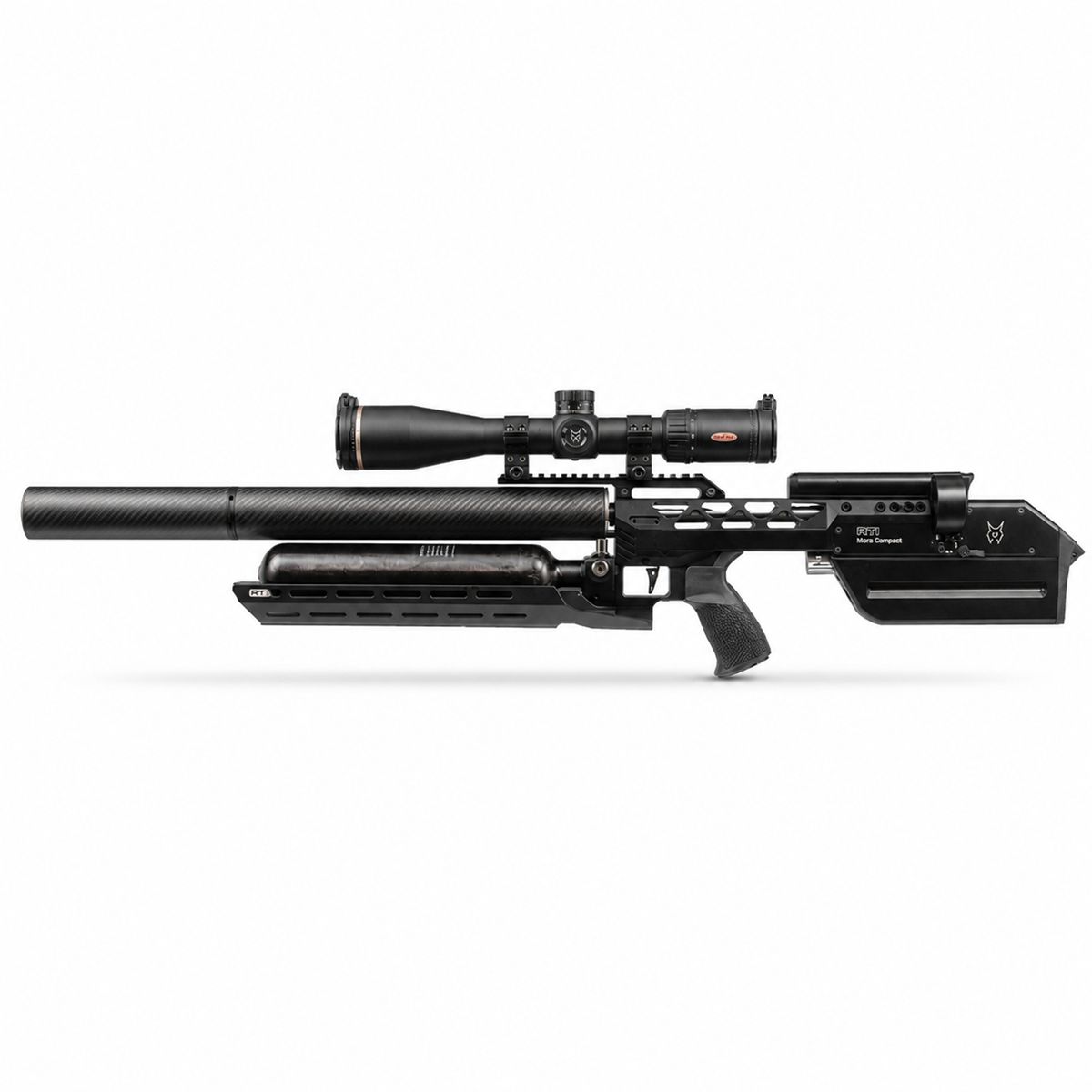

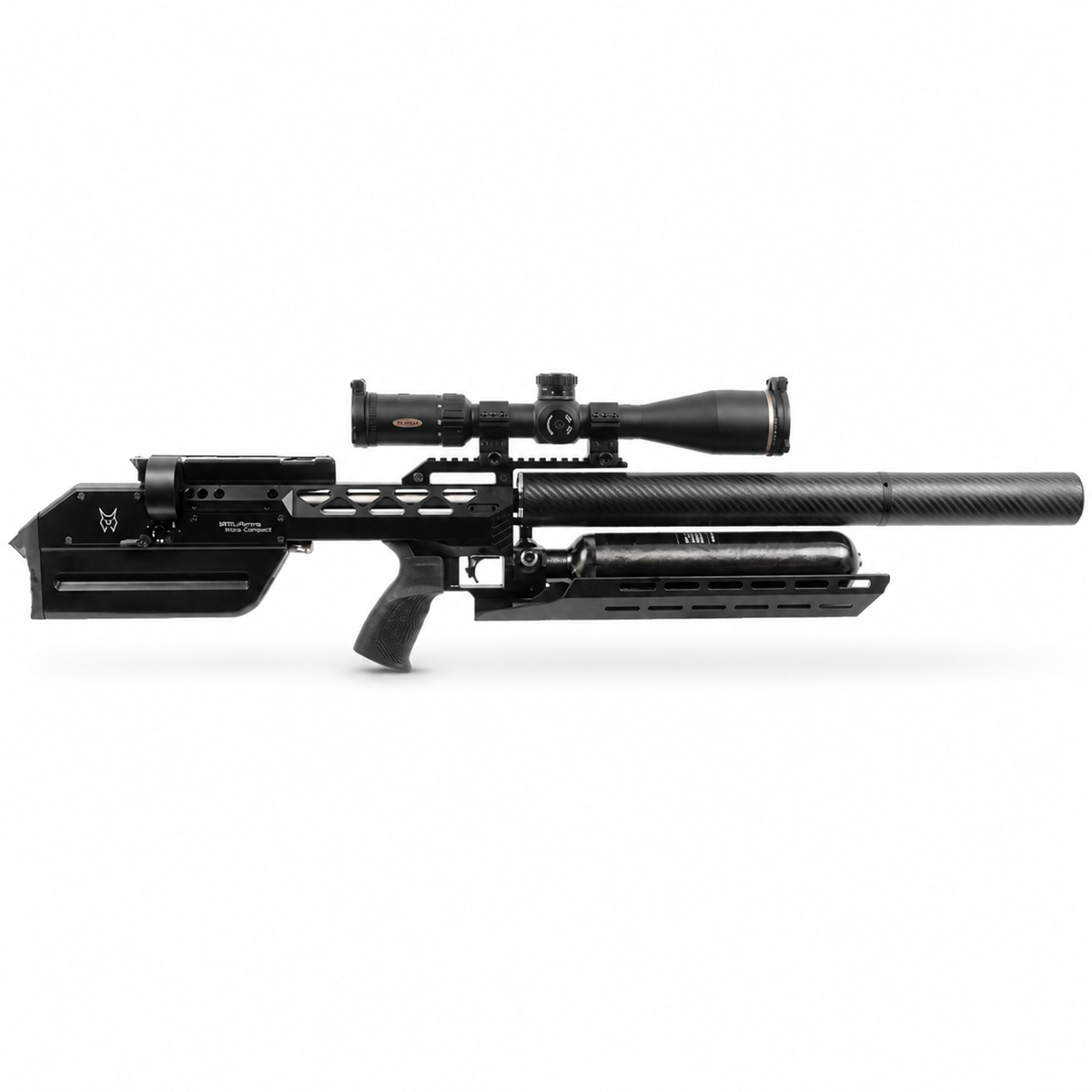

RTI Mora Compact V2 Gen 2 PCP Air Rifle

THE SHORTEST MORA—NOT A WATERED-DOWN MORA

The RTI Mora Compact V2 Gen 2 takes the power system, external tuning capability and long-projectile compatibility of the Mora platform and packages it into a rifle measuring only 30.9 inches overall.

Available from EDgun West in .22, .25 and .30 caliber, every Mora Compact in this listing uses a 500mm / 20-inch barrel and a 500cc carbon-fiber bottle.

Do not confuse “Compact” with lightweight, low-powered or entry-level. At approximately 9 pounds before adding a scope, the Mora Compact is a substantial precision PCP rifle. Its advantage is not featherweight construction—it is the combination of serious air capacity and an advanced tuning system in the shortest Mora configuration.

It is built for shooters who want a rifle that is easier to transport, easier to manage around a bench or vehicle, and less cumbersome in the field than the Standard or Sniper, without giving up the core engineering that defines the Mora.

AVAILABLE CALIBERS

• .22 caliber / 5.5mm

• .25 caliber / 6.35mm

• .30 caliber / 7.62mm

CORE MORA COMPACT FEATURES

• 500mm / 20-inch barrel

• 500cc carbon-fiber air bottle

• 125cc integrated power plenum

• Externally adjustable assisted valve

• Adjustable regulated pressure system

• Magazine capacities by caliber:

.22 caliber: 19 rounds
.25 caliber: 15 rounds
.30 caliber: 13 rounds

• Maximum 300-bar / 4,350 PSI fill pressure

• Adjustable 20–150 MOA Picatinny optics rail

• Smooth side-lever cocking action

• Fully adjustable two-stage trigger

• Trigger pull adjustable down to approximately 200 grams

• Two separate pressure gauges

• M-LOK-compatible accessory mounting points

• Reversible right- or left-hand magazine placement

• Interchangeable caliber system

• Standard AR-15-pattern grip

• Integral sound-reduction system where legally permitted

• Hušh 50 carbon moderator included

• Two magazines included

• M-LOK bottle shield included

• Heavy-duty fitted transport case included

REAL EXTERNAL TUNING

Many PCP air rifles advertise adjustability but give the shooter little more than a numbered wheel. The Mora provides meaningful control over the rifle’s regulated pressure and valve behavior.

At the center of the platform is a 125cc power plenum and RTI’s externally adjustable assisted-valve system. The valve uses pressure generated during the shot cycle to help it close more quickly. The goal is to produce the required energy while reducing the amount of air wasted after the projectile has already begun moving through the barrel.

External valve adjustment allows dwell time to be matched more closely to:

• Caliber

• Pellet or slug weight

• Desired velocity

• Regulated pressure

• Accuracy requirements

• Air-efficiency goals

This does not mean the rifle needs to be constantly adjusted. A good tune should be built around the projectile the owner actually intends to use and then left alone unless the ammunition or performance objective changes.

Maximum velocity is not automatically the best tune. The correct tune is the setting at which the chosen pellet or slug is accurate, stable, and consistent without consuming unnecessary air.

RTI Mora Compact Technical Information

Feature	Specification
.22 Barrel	RTI RPB barrel; light choke; 1:16-inch twist rate
.25 Barrel	RTI RPB barrel; light choke; 1:20-inch twist rate
.30 Barrel	Lothar Walther barrel; choked; 1:16-inch twist rate
Barrel Configuration	Can be configured as free-floating or supported beneath the scope area
Ammunition Compatibility	Accepts pellets and airgun slugs
Maximum Magazine Projectile Length	Approximately 22mm
Maximum Single-Loaded Projectile Length	Approximately 25mm
Air Bottle	500cc carbon-fiber bottle
Maximum Fill Pressure	300 bar / 4,350 PSI
Fill Connection	Standard Foster connection
Shot Count Variables	Caliber, regulated pressure, valve-dwell setting, projectile weight, desired velocity, starting pressure and ending pressure
Optics Rail	190mm, 18-slot Picatinny rail
Rail Elevation Adjustment	Approximately 20–150 MOA
Trigger	Fully adjustable two-stage trigger; adjustable first and second stages
Minimum Trigger Pull	Approximately 200 grams
Safety	Mechanically locks the hammer
Cocking System	Side-lever action
Grip Compatibility	Standard AR-15-pattern grip
Magazine Configuration	Reversible for right-side or left-side loading
M-LOK Mounting	Mounting points in the breech block, beneath the trigger guard and on the included bottle shield
Seal Diagnosis	External witness holes correspond with individual internal O-rings
Valve Service	Valve assembly can be removed without fully disassembling unrelated rifle components
Caliber Conversion	Supported with the appropriate RTI barrel, probe, magazine and related caliber-conversion components
Conversion Setup	Regulated pressure and valve settings must be adjusted for the new caliber and projectile

WHAT IS INCLUDED

• RTI Mora Compact V2 Gen 2 PCP air rifle

• Customer-selected .22, .25 or .30 caliber

• 500mm / 20-inch barrel

• 500cc carbon-fiber bottle

• Two magazines in the selected caliber

• Hušh 50 carbon moderator

• M-LOK bottle shield

• Heavy-duty transport case with fitted foam

EDgun West provides U.S.-based assistance from people who understand high-performance regulated PCP air rifles. We can help you select the right Mora configuration before the sale and provide knowledgeable guidance after the rifle arrives.

No anonymous marketplace. No overseas time-zone dance. No pretending that .22, .25 and .30 are interchangeable answers to the same question.

Choose the correct Mora once—and buy it from people who understand what makes it work.

Caliber

Price:

$2,399.00

Add to Cart

CHOOSE THE CORRECT CALIBER

RTI MORA COMPACT .22 CALIBER

The .22-caliber Mora Compact is the efficiency-and-versatility option.

It uses RTI’s proprietary RPB barrel with a light choke and a 1:16-inch twist rate. The magazine holds 19 rounds, giving the .22 the highest magazine capacity among the three EDgun West Compact configurations.

Choose the .22 Mora Compact when you prioritize:

• Higher magazine capacity

• Better air efficiency

• Broad pellet and slug availability

• Lower ammunition cost

• Precision target shooting

• Moderate-weight slug performance

• A flatter, faster-shooting setup with less projectile mass

The .22 is not merely the low-power choice. With the Mora’s large plenum and adjustable valve system, it can be configured across a wide performance range. It is the logical Compact for shooters who want flexibility and efficiency without immediately moving into larger, more air-hungry projectiles.

RTI MORA COMPACT .25 CALIBER

The .25-caliber Mora Compact is the all-around choice.

It uses RTI’s proprietary RPB barrel with a light choke and a 1:20-inch twist rate. Magazine capacity is 15 rounds.

The .25 sits between the efficiency of .22 and the heavier-projectile authority of .30. It provides more projectile mass and downrange energy than .22 while remaining more economical with air and ammunition than many .30-caliber setups.

Choose the .25 Mora Compact when you prioritize:

• A balance of power and shot count

• Strong pellet and slug compatibility

• General-purpose field use

• Long-range target shooting

• Heavier projectiles without moving to .30

• One caliber capable of covering several shooting roles

For many shooters, the .25 is the sweet spot for the Mora Compact. It offers enough projectile weight to take advantage of the Mora’s tuning system without sacrificing the handling and efficiency that make the Compact appealing.

RTI MORA COMPACT .30 CALIBER

The .30-caliber Mora Compact is the heavy-projectile option.

It uses a choked Lothar Walther barrel with a 1:16-inch twist rate. Magazine capacity is 13 rounds.

Choose the .30 Mora Compact when you prioritize:

• Heavier pellets and slugs

• Greater projectile mass

• More retained energy at distance

• Improved resistance to wind compared with lighter projectiles

• Maximum authority from the Compact platform

The .30 will generally consume more air than an equivalent .22 or .25 tune, and the shorter 20-inch barrel should be considered when selecting projectile weight and desired velocity. It is the Compact for shooters who value projectile mass more than maximum shot count.

FREQUENTLY ASKED QUESTIONS

IS THE MORA COMPACT A LIGHTWEIGHT PCP AIR RIFLE?

No. Compact refers to its overall length, not its weight. The rifle weighs approximately 9 pounds before a scope or accessories are installed. It is easier to transport and manage than the longer Mora models, but it remains a substantial precision PCP.

WHICH CALIBER SHOULD I CHOOSE?

Choose .22 for efficiency, ammunition selection and greater magazine capacity.

Choose .25 for the best overall balance of projectile weight, air use and versatility.

Choose .30 when heavier projectiles and downrange authority are more important than maximum shot count.

WILL ALL THREE CALIBERS SHOOT SLUGS?

The Mora platform is designed to accommodate pellets and slugs. The .22 and .25 versions use RTI’s proprietary RPB barrels, while the .30 uses a choked Lothar Walther barrel.

Every barrel will still prefer certain projectile diameters, weights and velocities. Slug compatibility does not mean every available slug will shoot accurately.

HOW MANY SHOTS WILL I GET?

Shot count varies too much by caliber and tune to provide one honest number.

A lower-pressure .22 pellet tune can produce far more shots than a high-output .30 slug tune. Regulated pressure, valve dwell, projectile weight and velocity all influence air consumption.

IS THE MORA COMPACT LESS POWERFUL THAN THE STANDARD?

The Compact uses the Mora’s 125cc plenum and externally adjustable assisted-valve system, but it has a shorter barrel. Barrel length can affect velocity and efficiency.

The correct model should be chosen around overall length, caliber, projectile, and intended use—not an unsupported headline power number.

DOES THE MORA COMPACT INCLUDE A MODERATOR?

Yes. The standard Compact package includes the RTI Hušh 50 carbon moderator. Use is subject to the laws and regulations applicable in your location.

DOES IT INCLUDE A SCOPE?

No. A scope and rings are not included. This allows the owner to select an optic suited to the intended shooting distance and application.

CAN THE MAGAZINE BE USED FROM EITHER SIDE?

Yes. The magazine design can be reversed for right- or left-side loading.

CAN THE MORA COMPACT CHANGE CALIBERS?

Yes, with the proper RTI caliber-conversion components. The rifle must be set up and retuned for the new caliber and projectile.

DO I HAVE TO FILL THE RIFLE TO 300 BAR?

No. Three hundred bar is the maximum published fill pressure. It is not necessary to fill to maximum pressure for every shooting session.

Always use properly rated filling equipment and follow RTI’s operating instructions.

WHY BUY AN RTI MORA FROM EDGUN WEST?

The Mora is not a commodity PCP. Its performance depends on choosing the correct caliber, projectile, regulated pressure and valve setting.
