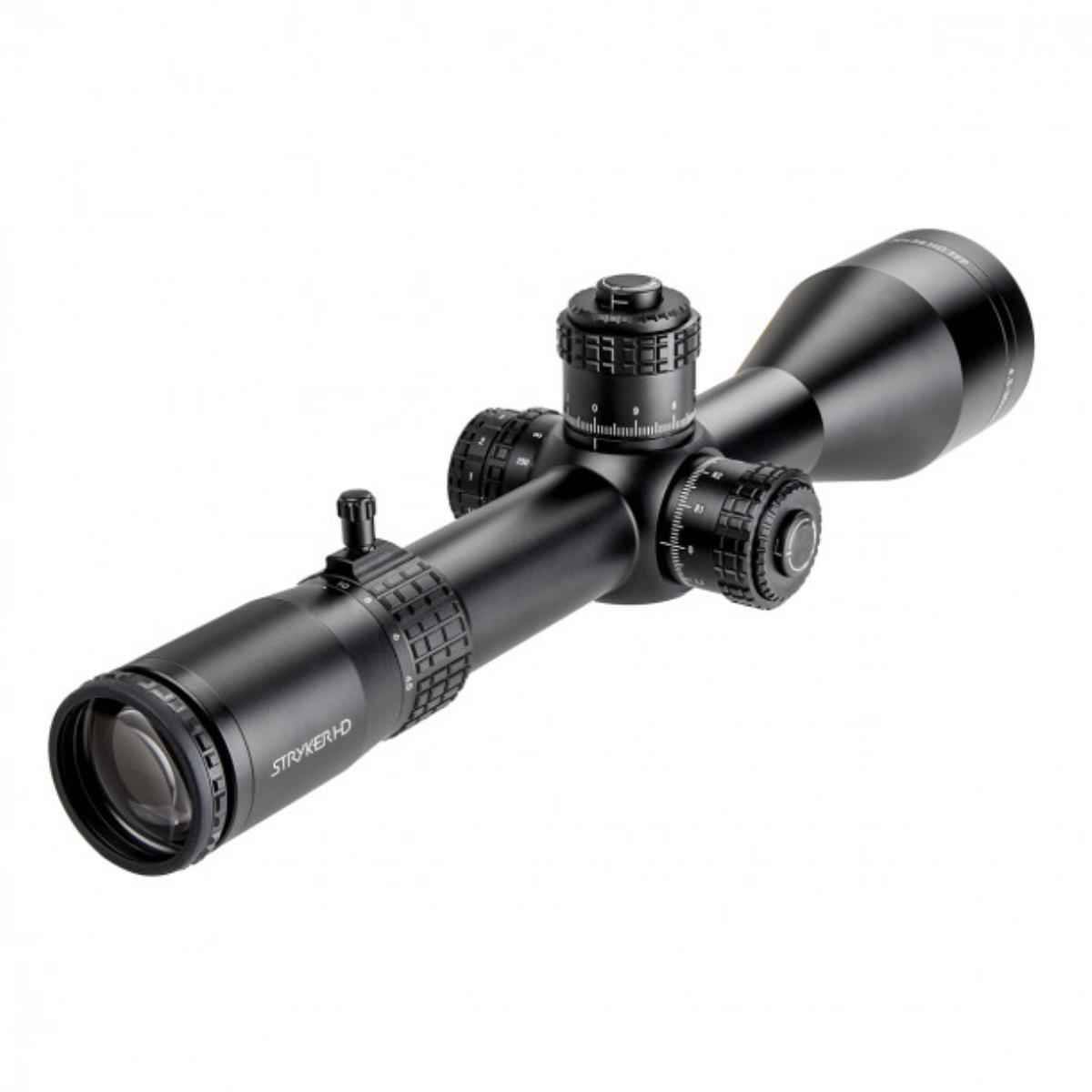

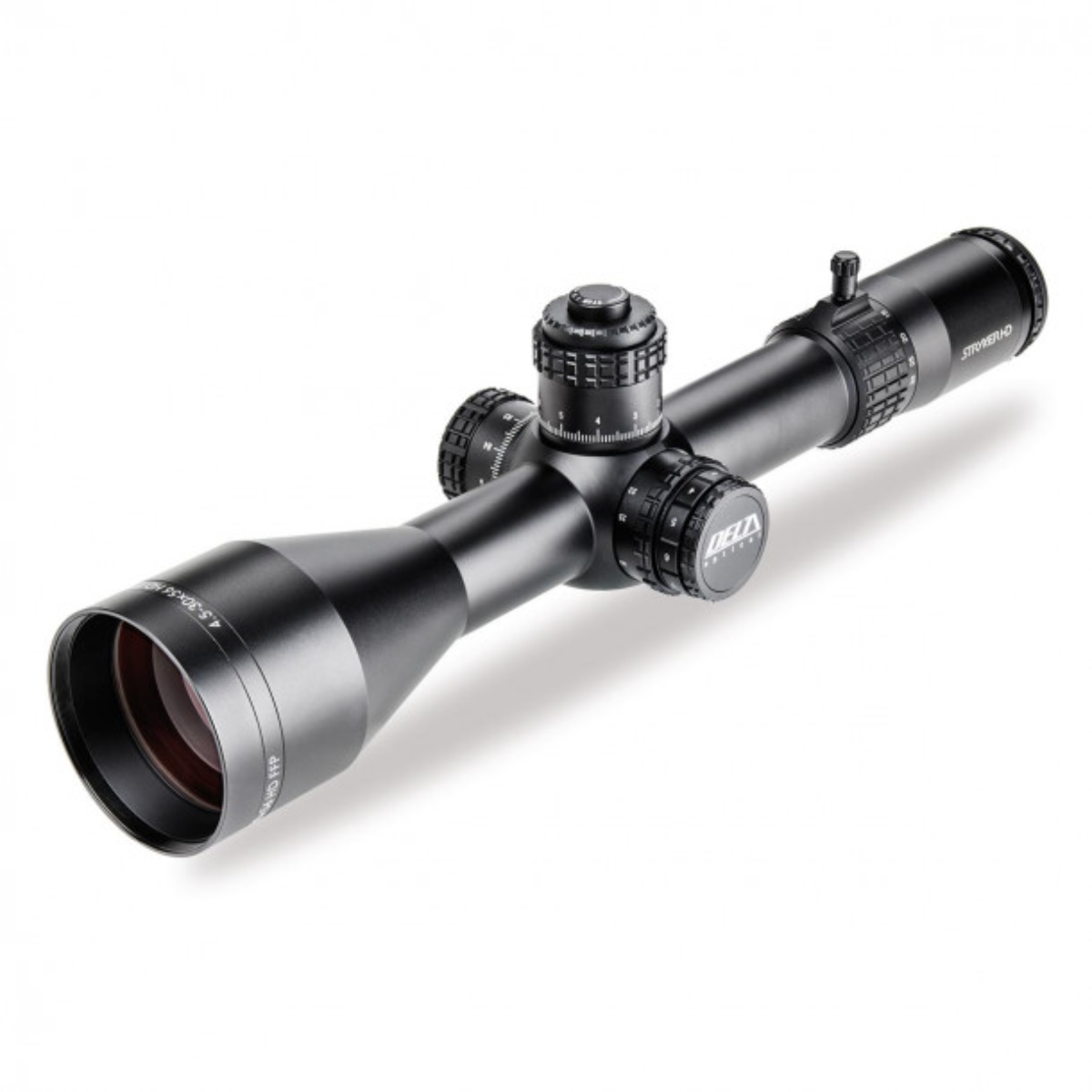

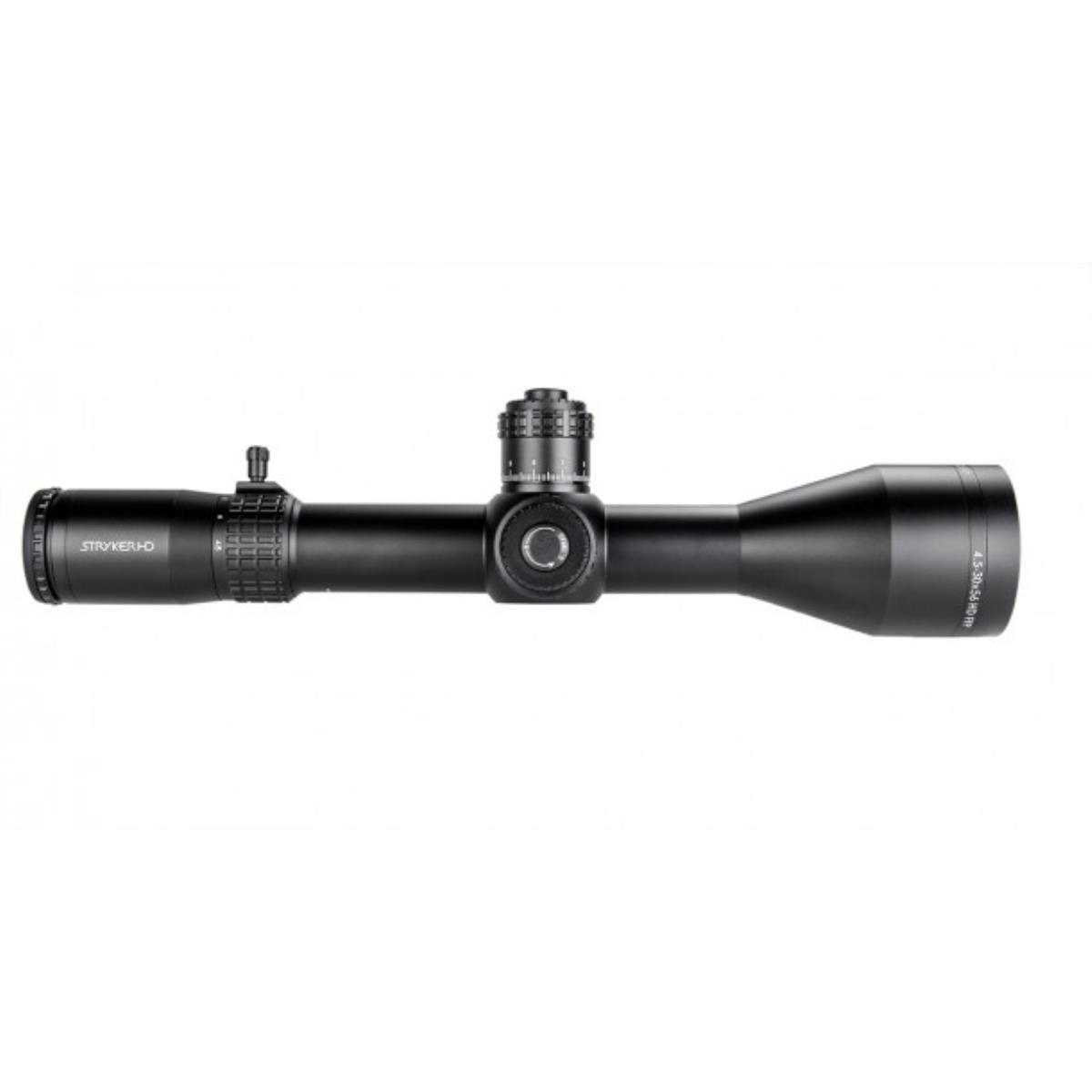

Perfect riflescope with a reticle in the first focal plane for precise shooting at medium and long distances Optical design comprising of carefully selected ED glass provides excellent image quality and impressive light transmission, special anti-reflective coatings and illuminated central target point allow to fire an accurate shot even in low light conditions. Sleek and robust 34 mm tube provides an extensive range of vertical reticle adjustment reaching 300 cm. Open turrets equipped with a ZeroLock mechanism which allows setting the limit for elevation - usually after zeroing the riflescope at preferred shooting distance. The lock allows the shooter to make corrections only in elevation and prevents lowering the point of impact below the user-defined limit. Despite these advanced functionalities the riflescope weighs only 1014 g, and its length does not exceed 365 mm.
Reticles have been explicitly designed to work in the first focal plane (FFP), maintaining permanent dimensions throughout the whole zoom range. Reticles LRD-1P, LRD-1T, and DLR-1 are genuinely unique and dedicated to any ambitious shooters. These are milliradians reticles (MIL), and so any corrections can be applied using metric units (1 Mil = 100 mm @ 100 m). Reticles correspond with the click of the scope - 1-click equals 0.1 MIL (10 mm). All three reticles provide maximum comfort of use and accuracy of the shot with great proven functionality throughout the whole zoom range (4.5-30x). The one-of-a-kind design of the reticles allows for measuring the distance to an object of known size, as well as elevation and windage correction. The vertical adjustment range of each reticle reaches 300 cm, facilitating shots of any caliber, even at very long distances.

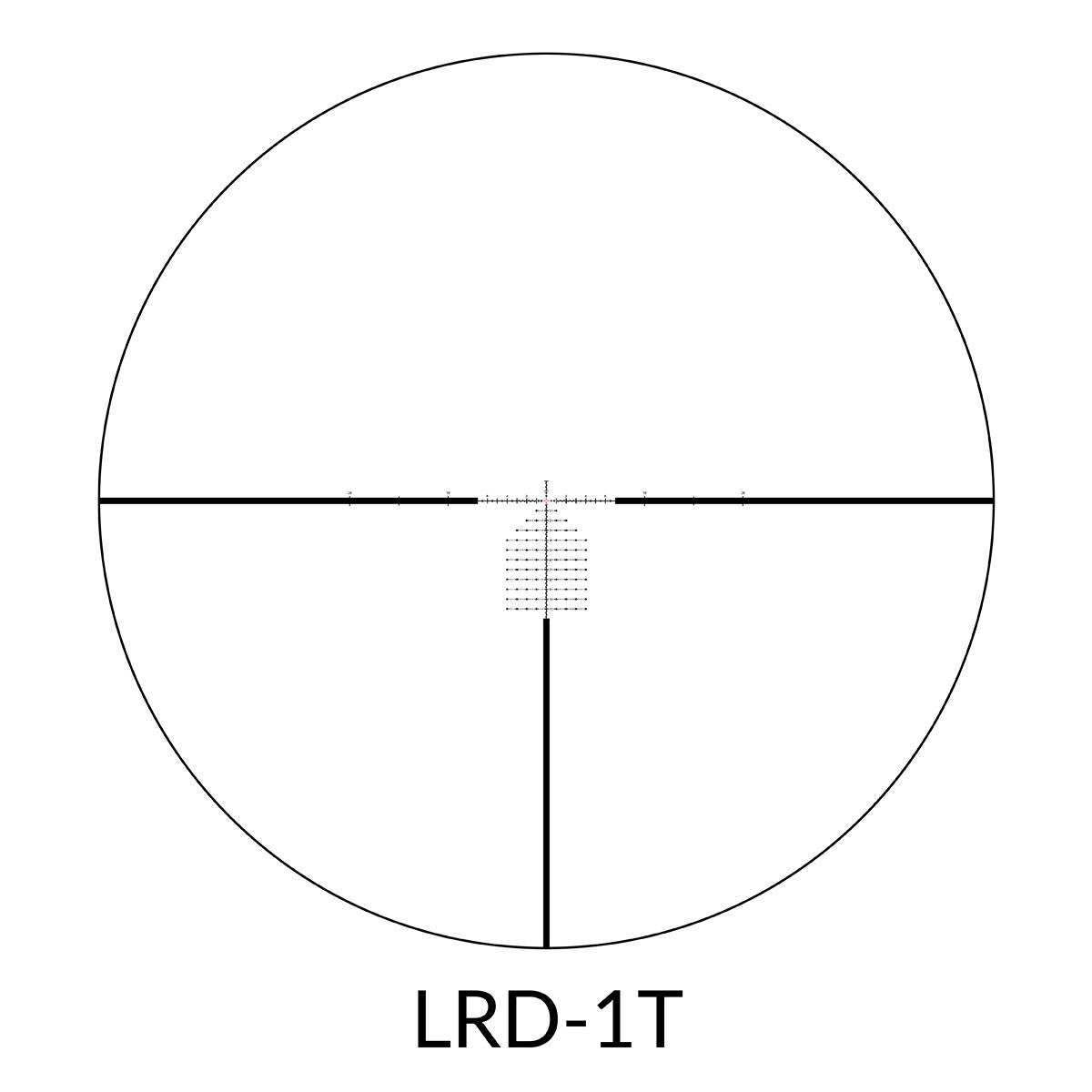

LRD-1T reticle
This one is an extension of the LRD-1P reticle and is additionally equipped in the lower part with ballistic markings for quick and easy adjustments to the projectile drop and windage correction and derivation.

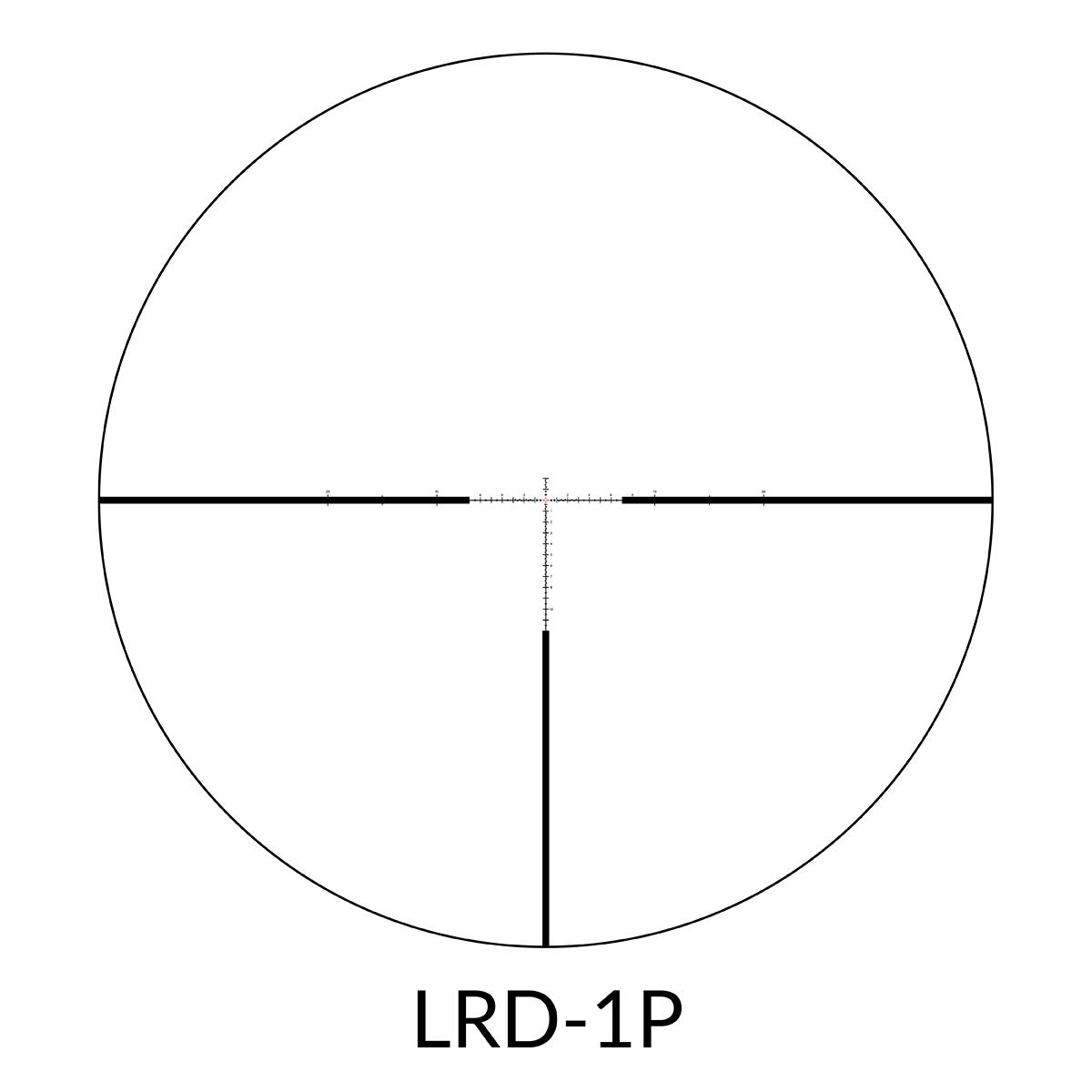

LRD-1P reticle
The center of the reticle is an illuminated 0.045 Mil target point with surrounding, well-lighted markings that form the cross.

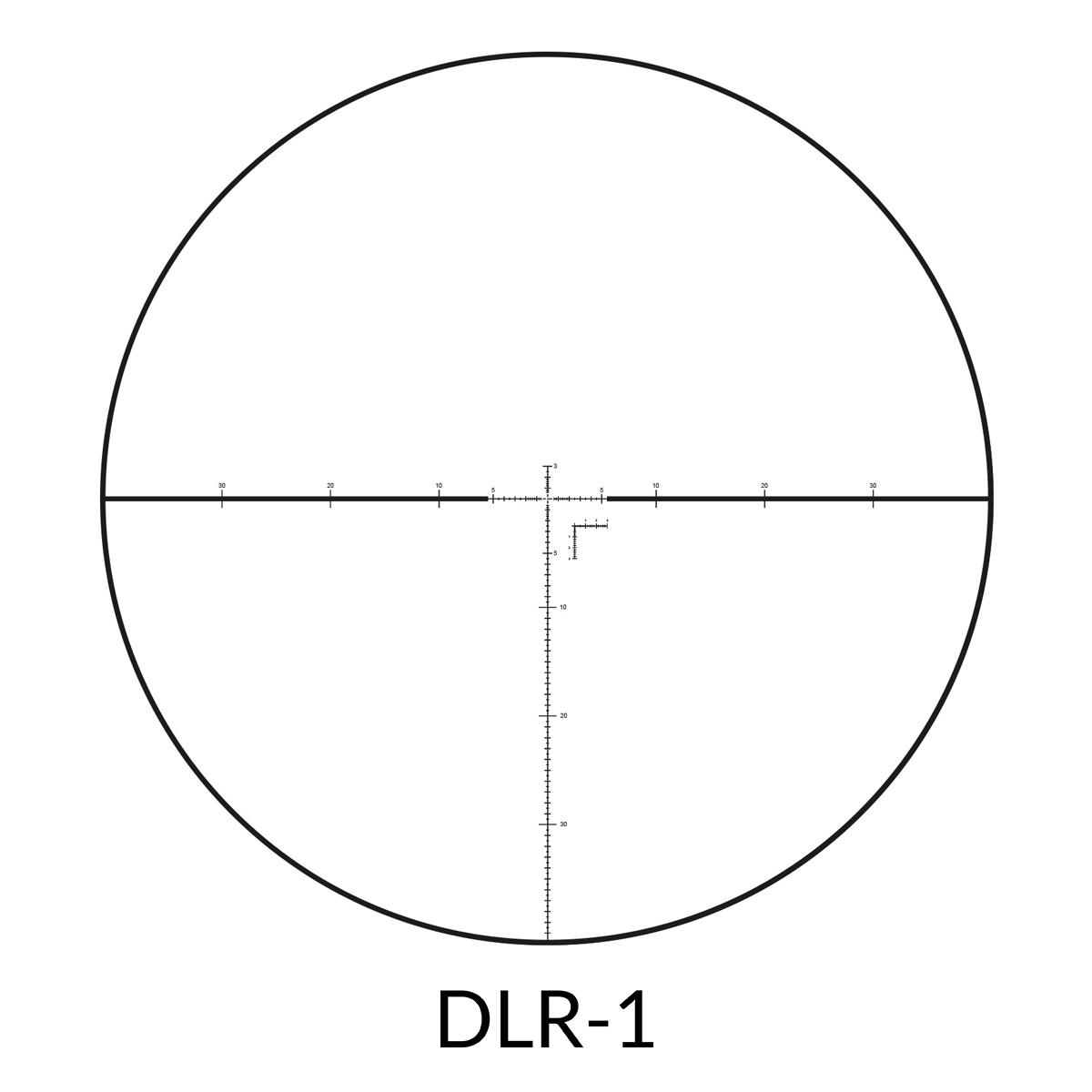

DLR-1 reticle
The Central illuminated dot has a diameter of 0.07 Mil (7 mm). Thin crosshairs of just 0.05 Mil (5 mm) with thick 0.4 Mil (40 mm). Posts of the crosshairs. Crosshairs are divided by distinctive markings into lengths of 0.2, 0.5, and one mil (25, 50, and 100 mm respectively). Moreover, this reticle has a useful additional crosshair which allows for accurate measurement of the target in the upper magnification range with an accuracy of up to 0.1 miles (10 mm)



  • Series :Stryker HD
  • Magnification [x]:4,5-30
  • Objective diameter [mm]:56
  • Reticle:LRD-1T, LRD-1P, DLR-1
  • Illuminated reticle:Yes
  • Angular field of view [degrees]:4,72-0,71
  • Linear field of view at 1000m [m]:8,3-1,2
  • Exit pupil [mm]:8,8-1,9
  • Eye relief [mm]:81-97
  • Water resistance:0,3kg/cm2
  • Weight [g]:1 014
  • Length [mm]:365
  • One click:0,1 MIL (1 cm @ 100m)
  • Max. elevation / windage adjustment range :30/15 MIL
  • Tube:34 mm (1 piece)
  • Parallax adjustment:Side focus (23 m - ∞)
  • Reticle position:First focal plane(FFP)
  • Functional temperature range [°C]:-20 — +71
  • Nitrogen filling:Yes
  • Remarks:ZeroLock
  • Reticle:DLR-1, LRD-1P, LRD-1T

















Reticle
Price:
$1,590.00
