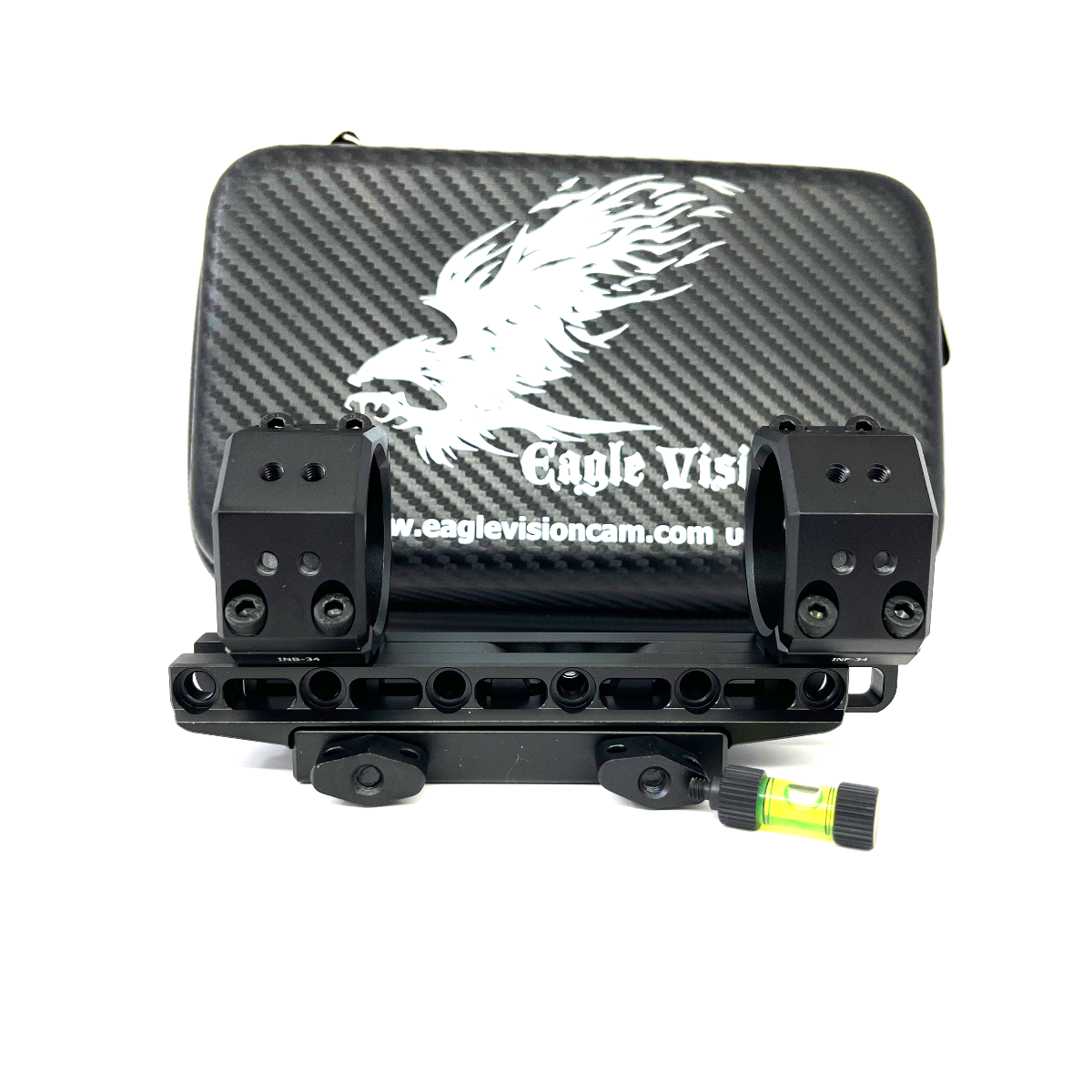

Eaglevision One pice Infinity Elevation Scope Mount

This well-designed scope mount allows the scope to move vertically along a guided path. The mount is lockable in different positions using two screws.
The mount can be used as a low profile or adjusted to a high profile too if your scope objective is too close to your rifle barrel or shroud.
This practical patent helps shooters who enjoy long-range shooting and often run out of adjustment clicks on their turrets.
The mount can also come in handy if you have not been able to use your favorite scope due to lack of space between the rings or the unusual position of your dovetail or Picatinny rail on your gun.
We are very proud of this product as it became a “must-have” solution among people who love their bullpups.
The design of the mount is dedicated to people who want to improve their performance contrasting with what ordinary mounts allow to do. By keeping the front mount at its lowest and elevating the rear mount to the highest point, you can zero in your gun far beyond what standard mounts allow you to do, without using the clicks on your turrets, hence keeping the optical center of your scope intact (the ideal situation for long-range shooting).
Please note:
DO NOT use more than 4x elevation screws as you may damage your mount.
Height: 65 mm to 69.5 mm (adjustable)
Profile Height: 21 mm
Adjustable Height: 4.5 mm
Weight: 92 gm each one
Centre of the ring to the bottom of the rail: 38 mm in the closed position
Centre of the ring to the bottom of the rail: 42.5 mm in the opened position
Ring size: 34 mm
Rail size: 22 mm Picatinny
Item includes:
  • 1 x  infinity scope mount
  • 3 x Allen key set – different sizes
  • 4 x small spear screws
  • 6 x large screws
  • 1 x waterproof case
Pressure calculation:
Ring screws maximum Torque,
15-20 Inch-pounds Force to 1.68-2.25 NM Newton Meters.

Adjustable side screws maximum Torque,
53-71 Inch-pounds Force to 6-8 NM Newton Meters.

Picatinny nuts maximum Torque,
53-71 Inch-pounds Force to  6-8 NM Newton Meters.
Ring Size
