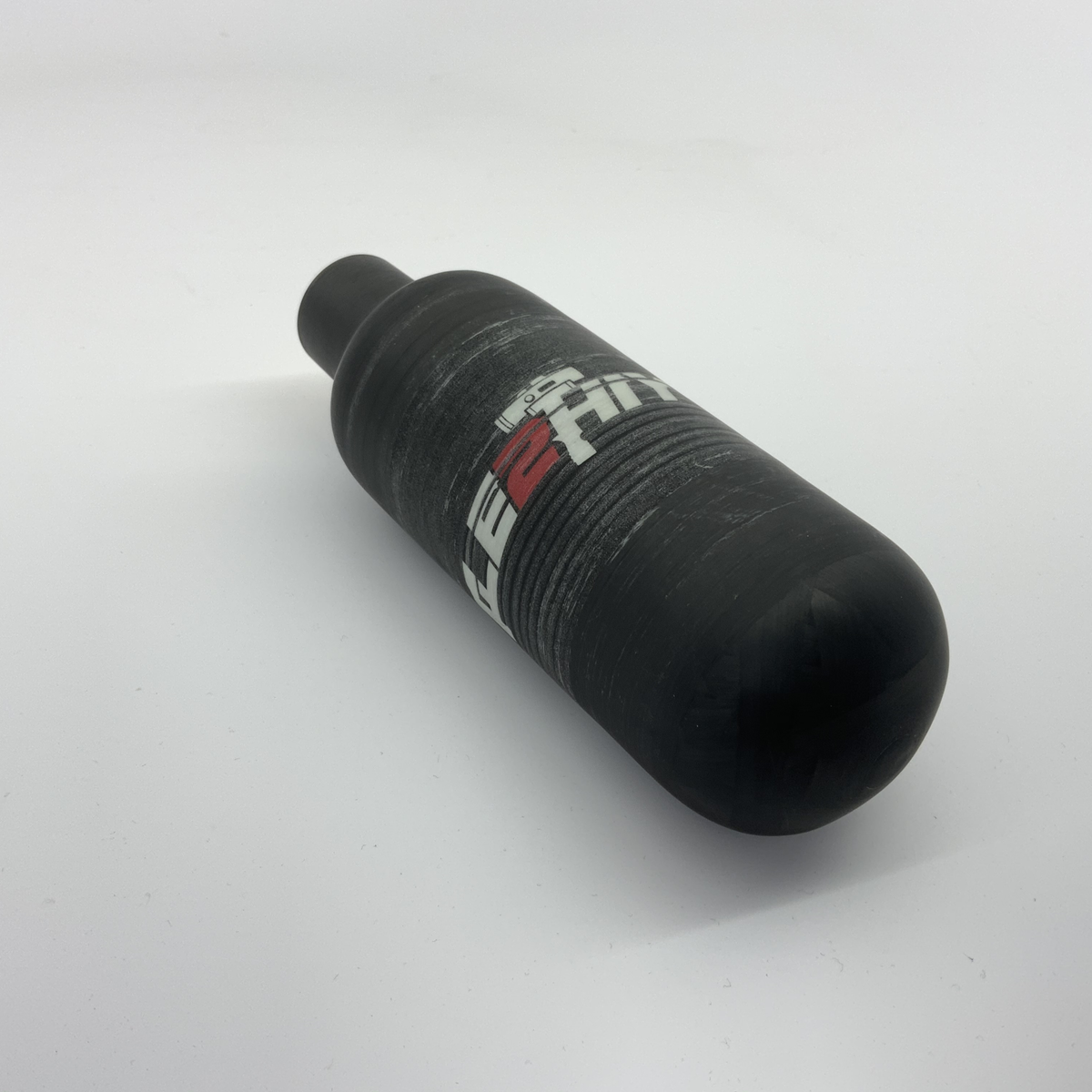

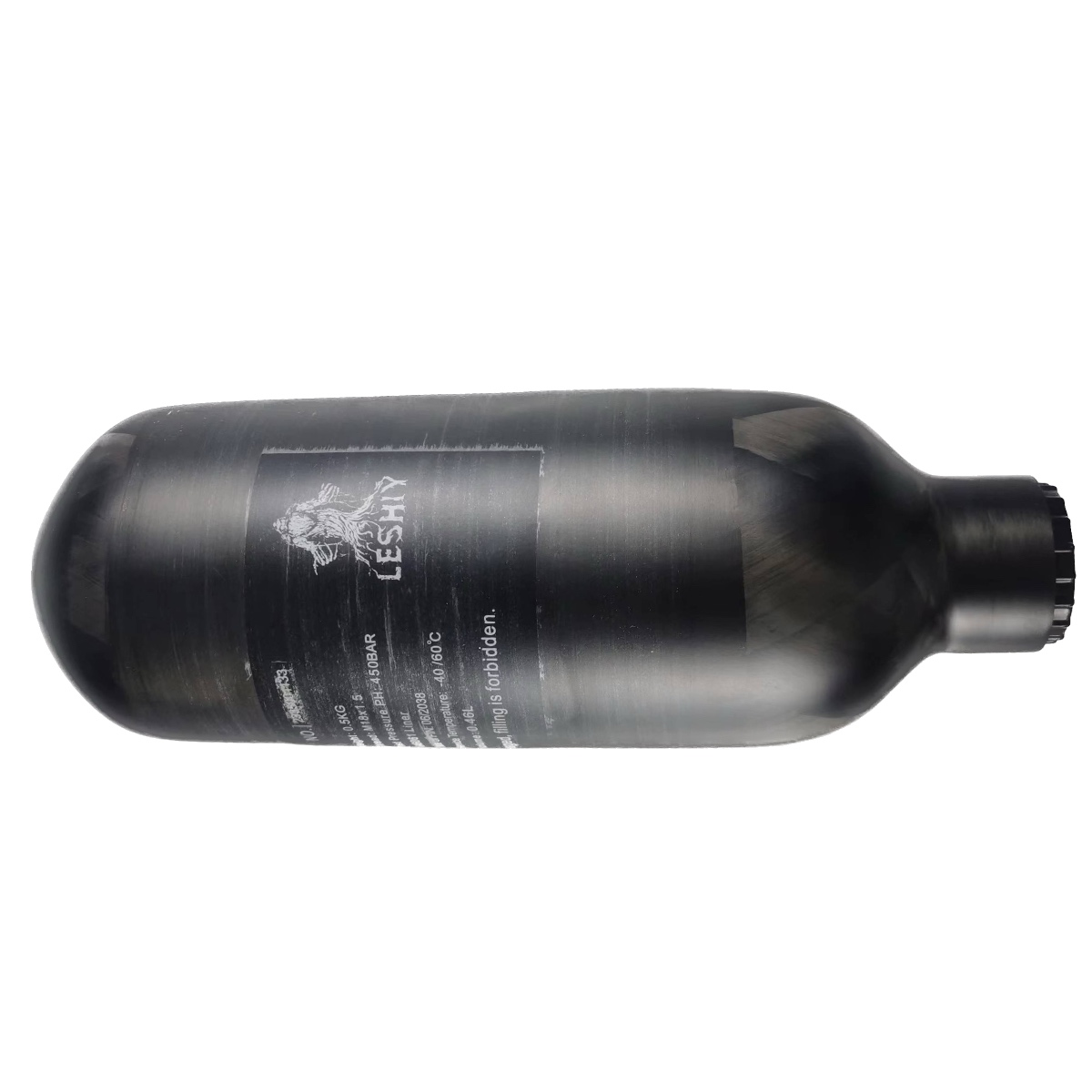

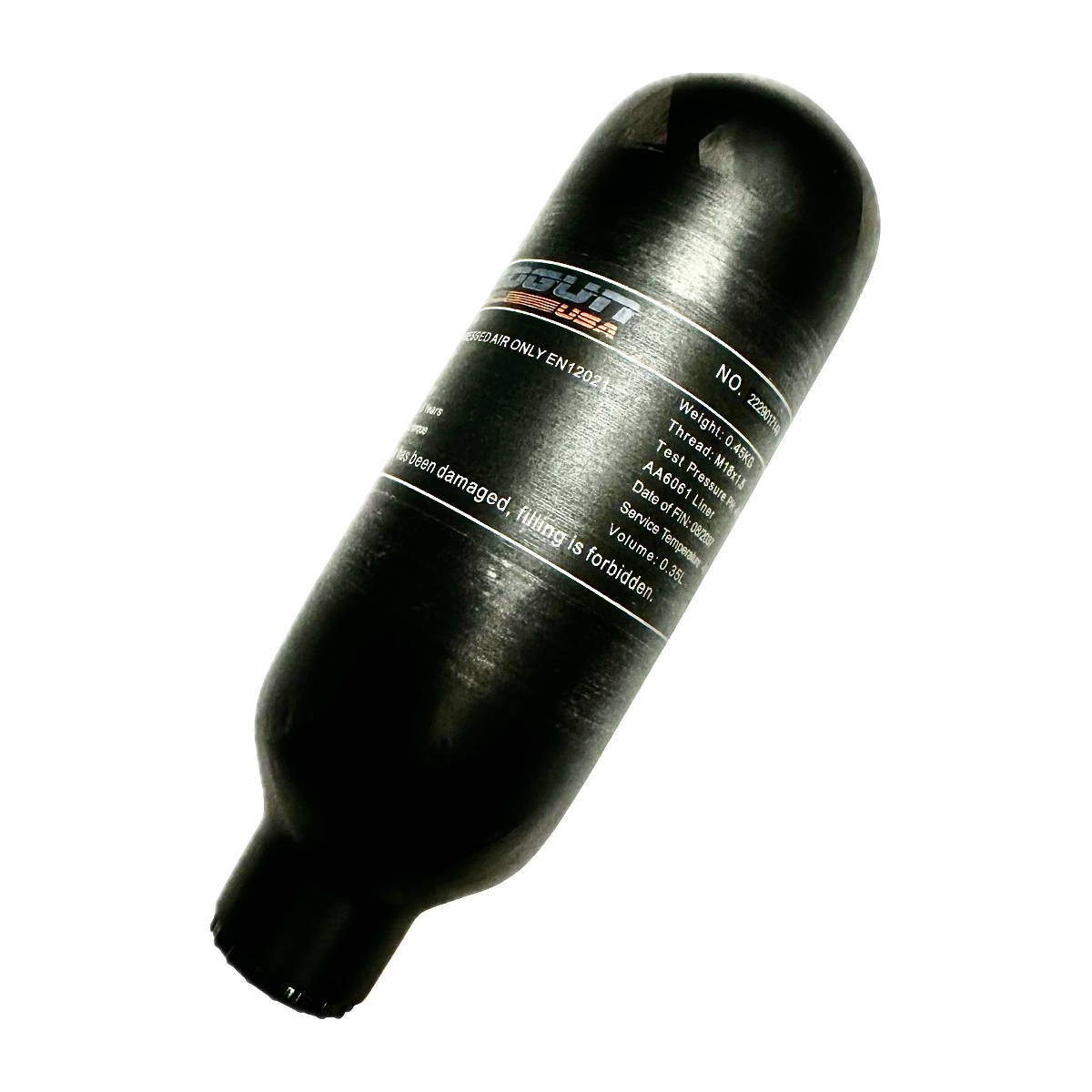

EDgun Leshiy 2 Air tank - 300 bar carbon fiber

Edgun Leshiy 2 carbon fiber 300 cc tank is custom designed for the Leshiy 2 to provide the maximum shot count while maintaining the gun's exceptional balance.
M18 thread
300 CC
300 Bar working pressure
OEM Leshiy 2 Logo
Custom-fit to allow maximum grip space
12 ounces
7 inches long
2.5 inches diameter
123% increased air receiver volume over OEM configuration
significant increase in shot count

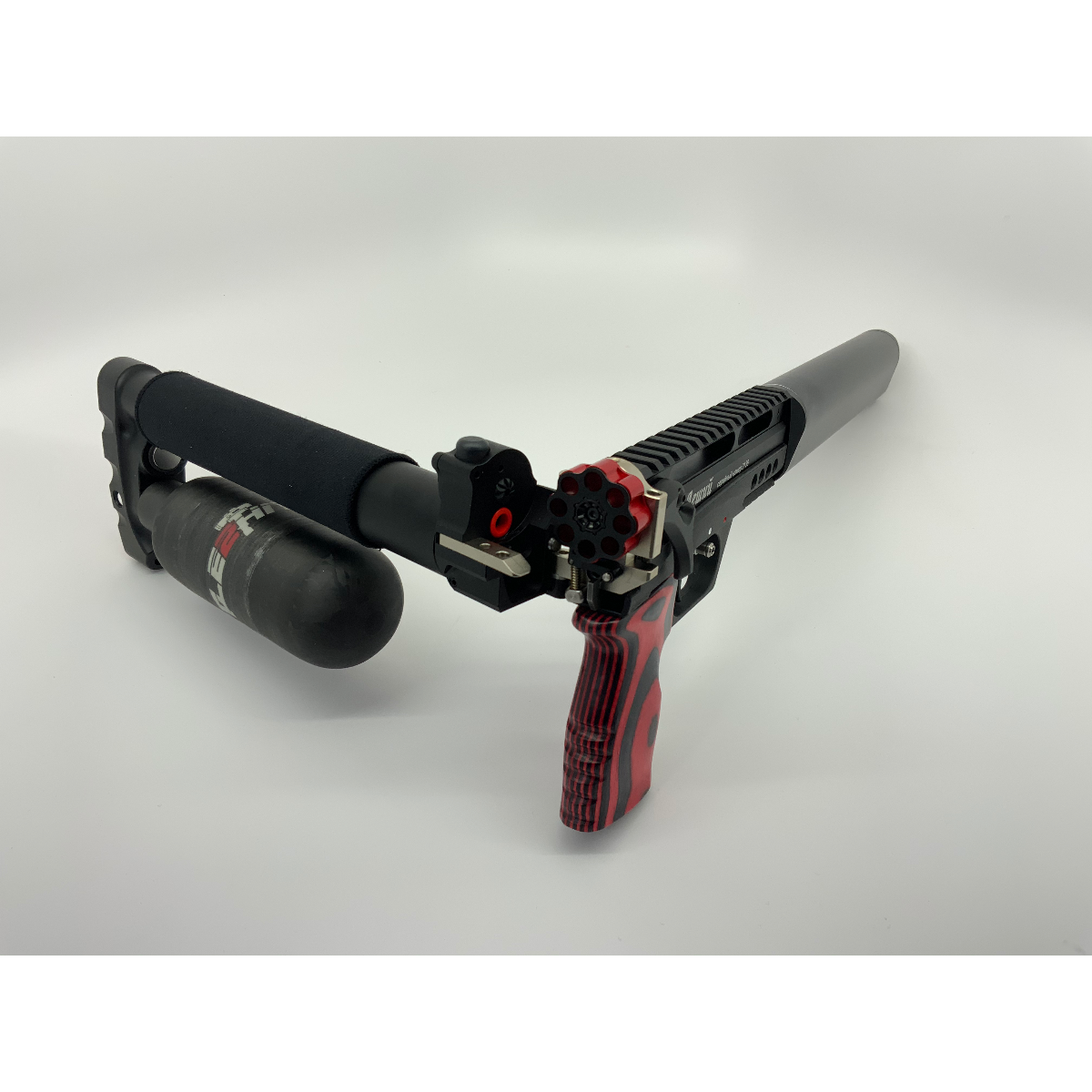

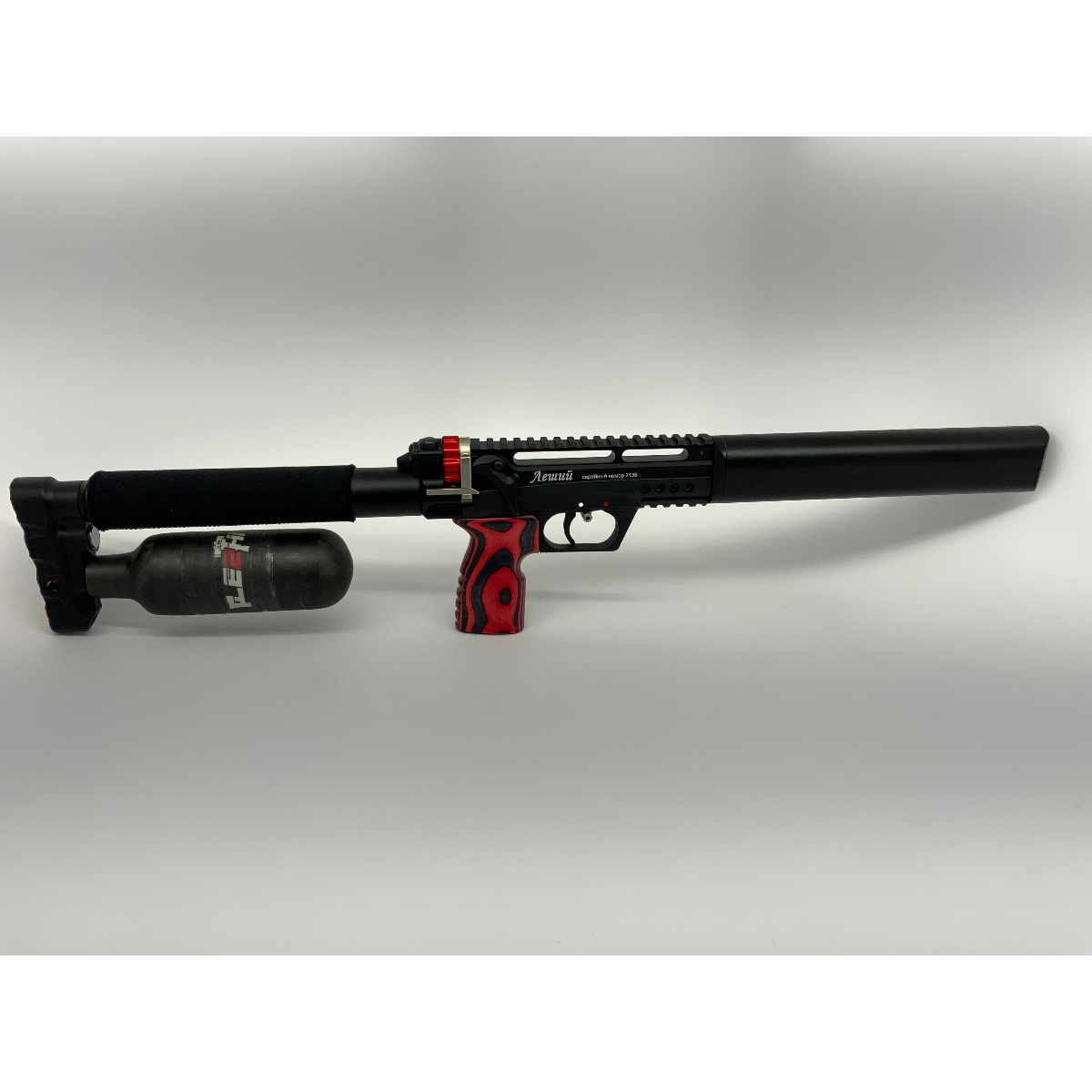

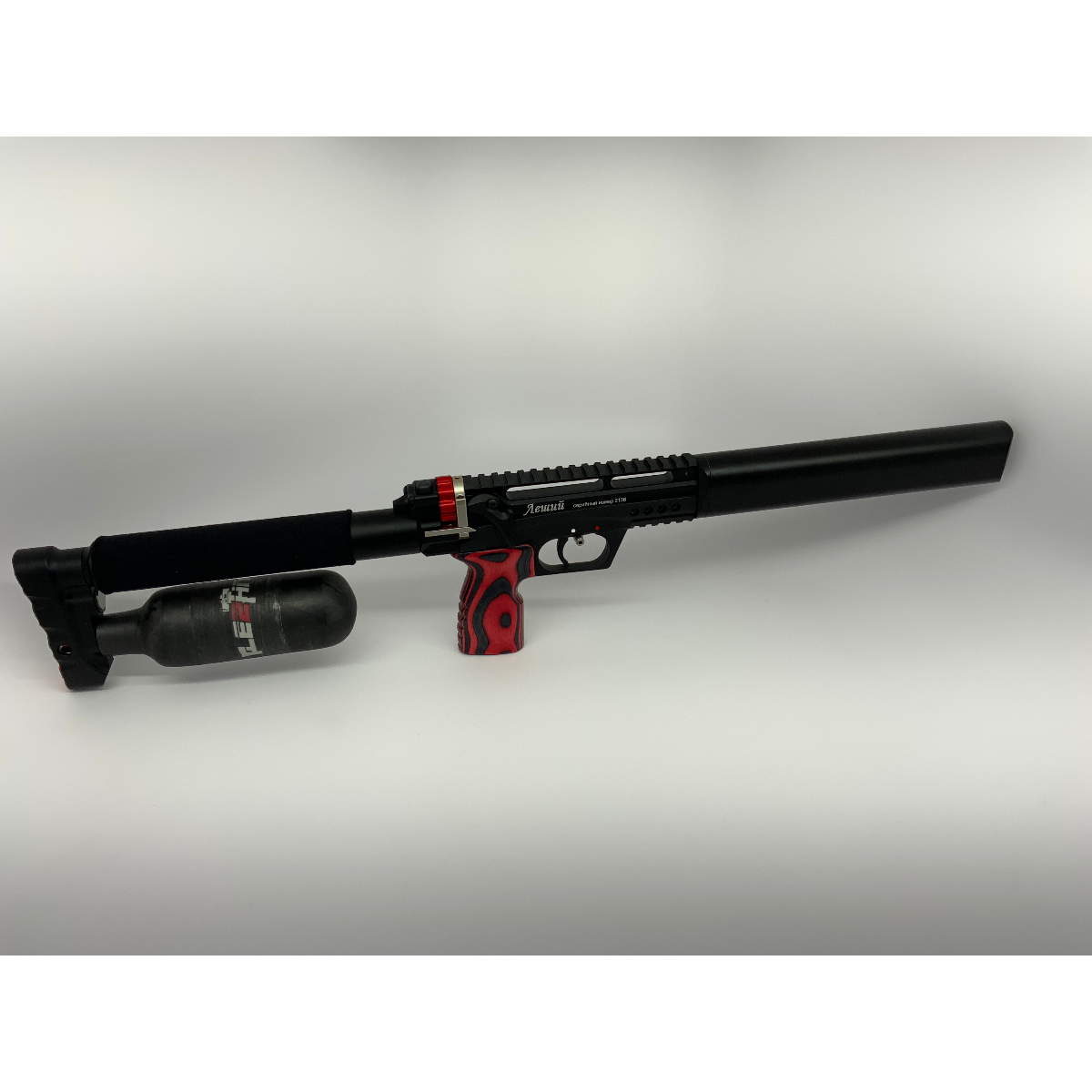

Installing the bottle onto the Leshiy 2
  1. Degas gun - locate the bleed screw on the right side of the valve assembly
    •  only crack the bleed; there is a detent ball under the grub screw
    • after 100% of the air is drained, tighten the screw - do not over tighten
  2.  Remove auxiliary air tank arm brace - 4mm hex wrench
  3. place fill probe into the fill port - this keeps the fill assembly from spinning
  4.  Unscrew the auxiliary air tube
  5. Unscrew air tube coupling - find the flat spots of the coupling and use a wrench
  6.  ensure there is an O-ring at the bottom of the male M18 threads (18X2.5 buna 70)
  7. Thread on the new bottle hand tight
  8. Fill Leshiy 2 -check for leaks
